Muncie M20 / M21 / M22 Sequential Shifter
Convert your classic M20, M21, or M22 Muncie 4-speed into a lightning-fast sequential gearbox. Engineered for precision and straight-line performance, this complete kit replaces your standard H-pattern with a direct push/pull operation, giving you reliable, miss-free shifting when it counts.
Performance Benefits & Shift Operation
This shifter utilizes a dedicated 1-2-3-4 pattern with a true neutral available between every gear, offering distinct advantages for drag racing and heavy track use:
- Easy Roll-Outs: You can easily bump the shifter out of 4th gear directly into neutral to coast smoothly after a high-speed run.
- Downshift Protection: The mechanism makes it physically impossible to accidentally drop into neutral when aggressively downshifting into 1st gear.
- Independent Reverse Lever: To keep the primary sequential mechanism as robust, simple, and reliable as possible, reverse is selected using a dedicated secondary lever.
- Short Throw Action: Fast, crisp gear changes with a tight 70mm (2.75″) throw.
Lever Options
Choose the ergonomic setup that best fits your transmission tunnel and seating position.
- Straight Lever
- Laid Back Lever
What’s Included in the Kit?
This is a comprehensive bolt-on kit. It includes the main shifter unit, all required shift arms, push rods, fitting components, and the shift knob.
Optional Upgrades
- Digital Gear Indicator & Sensor: Want to see exactly what gear you are in? Add our 0-5V rotary position sensor and digital dash display to your setup.
Fitment Notes
Because Muncie transmissions were produced over many years with multiple variations, you must verify your specific rear housing before ordering.

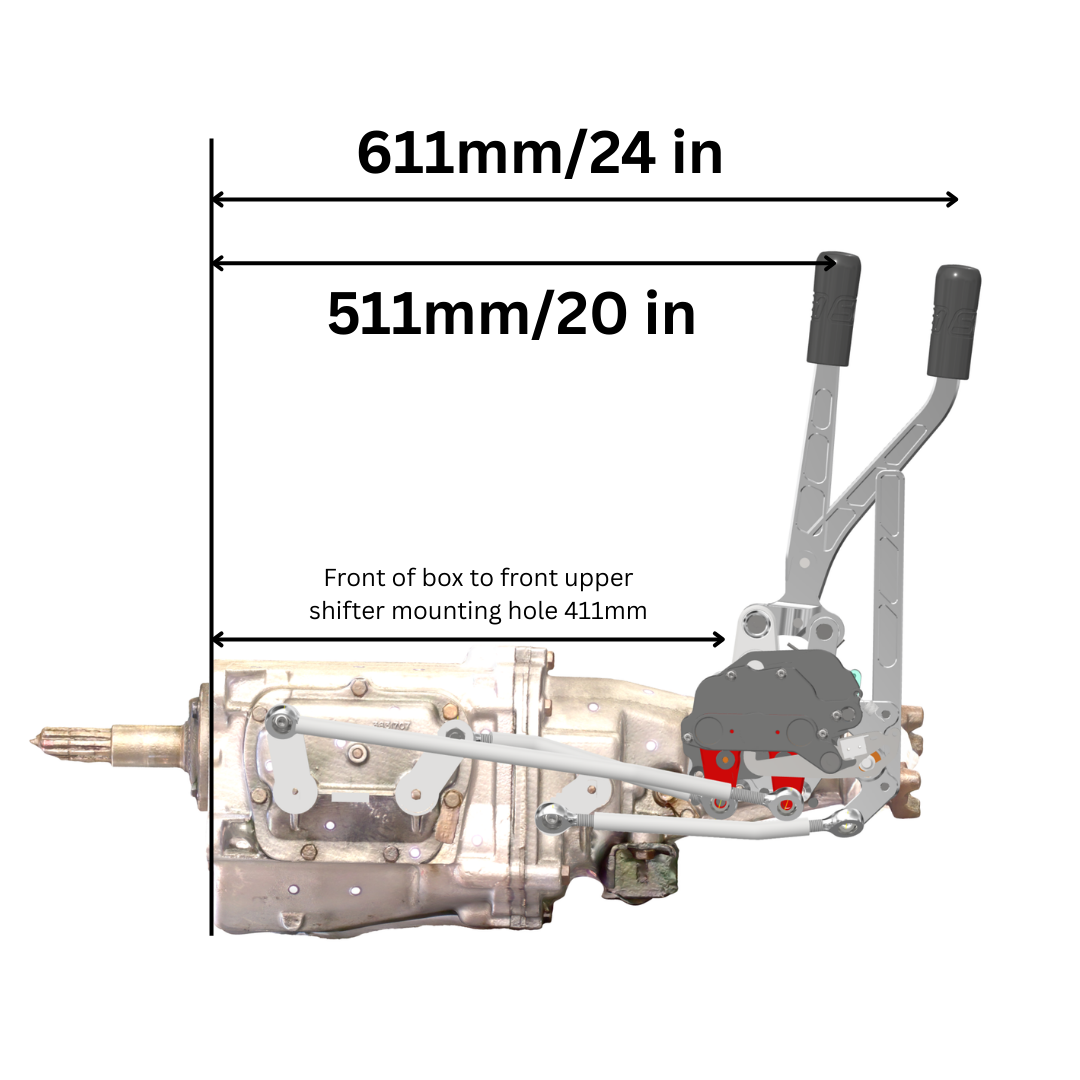

- The 410 mm check: This shifter is designed to fit all Muncie boxes that measure exactly 410mm from the front of the main transmission housing to the front upper-most shifter mounting hole.
- Housing ID: The mechanism was specifically designed around the 3831731 rear housing casting, though any housing matching the 410mm measurement will be fully compatible.
If you are unsure exactly which Muncie variation is sitting in your chassis, we recommend this external resource: Guide to Muncie M20, M21, and M22 Transmissions.
