Sequential Shifter: Magnum

(14 customer reviews)

$ USD 1,599.00 + Gst for Australian orders

Sequential shifter for Tremec Magnum & Magnum XL

Clear

Description

Sequential shifter Magnum

 2021 version available now

This shifter will convert your standard H-pattern gearbox to sequential operation with a simple bolt fitting for repeatable quick shifts. This product has been designed for easy instaliation for anyone with basic mechanical skills. Get the next gear every time! It’s not possible to get the wrong gear with this shifter. No more accidental 2-5 shifts costing races or 5-2 costing engines.

  • ~ Precise mechanical feed back to the driver.
  • ~ Fast consistent shifting.
  • ~ Mechanical reverse lock out for safety and ease of installation.
  • ~ Option of 0-5V position sensor for use with data logging and electronic dash equipment this can also be used for gear-based boost settings and other applications.
  • ~ Optional gear indicator (sensor is now included in price of gear indicator, no need to select sensor separately)
  • ~ Proven performance.
  • ~ Neutral can be selected between every gear.
  • 2021 update smooth shift indexing cam
  • 2021 update left lever version available
  • 2021 Dogbox/faceplate version available

Performance benefits

Get the next gear every time! It’s not possible to get the wrong gear with this shifter. No more accidental 2-5 shifts costing races or 5-2 costing engines.
Our sequential shifter does not work by forcing the gearbox into gear and will actually apply less force to the internals than a standard shifter and far less miss shifts will drastically reduce gearbox wear. The shifter has been specifically designed for use with synchro gearboxes and the loads encountered under hard driving, you will not break this shifter!
The shift speeds are improved purely through the greatly improved usability for the driver. The simple pull back to up shift and push forwards to down shift is much easier to coordinate all movements under racing loads than the H-pattern shift. We have also optimised the design for the best driver feedback possible we do not add any rubber joints to give the driver a smoother feeling as in the performance application we would call that a vague shift

What is included?

The basic kit includes everything you need to convert your gearbox to sequential shift including the shift knob but we do have some options :

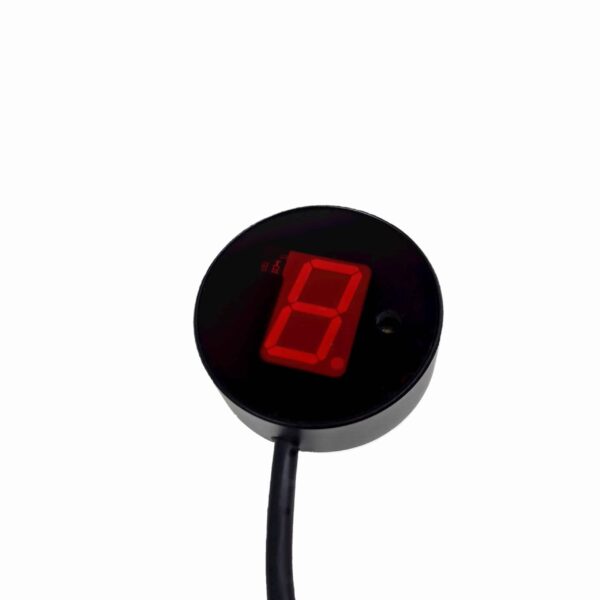

  •  The gear indicator and sensor can be used to display what gear you are in.
  • The position sensor on its own can be used to display gear on many aftermarket displays)
  • Offset lever can be used to move the shift lever backwards or forwards this is recomended for vx-vz commodores
  • Shifter surround will help keep noise and fumes out of the car around the shifter opening.
  • The high linkage lever will give you a high mount lever  while maintaining the short thow and can move the lever backwards or forwards. This is mostly used for race cars and when the lever position needs to be moved further than about 70mm

Which gearboxes will this version fit?

  • This version is to suit the after market Magnum gearbox with the large 6 bolt shifter mounting flange, the Magnum XL (original Magnum box) with the extended housing and 4 bolts shifter (Ford upgrade) mount or the Magnum F (4th gen Camaro/Commodore upgrade). Please select the correct version in the drop down box. If you are unsure which version of the sequential shifter you need please contact us and we will help work that out. Keep in mind that all shifters fit gearboxes and not specific cars you may need to modify transmission tunnel to suit.
*Magnum xl gearbox will need a small modification to the gearbox for fitment.



Instructions

Downloaded as a pdf Magnum instructions.

All direct mount shifters are design to fit the gearbox and not a specific car, with direct mount shifters most require some trimming of the transmission tunnel and we have the “shifter surround” part available to seal this back up. In most cars the shifter will clear the interior trims and look neat once installed, if you can’t find a picture of a shifter installed in your model of car send us a message.



This design is Patent Pending

#v8 #t56 #tremecmagnum #tremec #6speed #lsswap #protouring @bowlertransmissions ...

1522 6

To quote @dannystroo "when you try shaking it side to side at a stop light" 😂🤣#v8 #t56 #tremecmagnum #stickshift #lsswap #protouring #chevrolet #holdencommodore ...

1306 10

Magnum 6 bolt shifters are back in stock and ready to ship. #tremec #tremecmagnum #6speed #lsswap #v8 #protouring #sequential #stickshift ...

193 2

#sequential #s1sequential #tremec #tremecmagnum #v8 ...

620 8

Street test with @switchsuspension
#f100 #s1sequential #stickshift #manual #sequential #v8 #protouring #tremecmagnum
...

993 17

@s1sequential #s1sequential #tremec #protouring #holdencommodore #ssute #chevroletcomaro #tremecmagnum ...

1251 13

Sequential for tremec magnum. We will have more ready to ship on 2 weeks. Get in quick if you want one of the first 😀 @officer_dan #sequential #s1sequential #tremec #drift #racecar #driftcar #tremecmagnum ...

558 3

#sequential #s1sequential #tremec #lsswap #v8 #racecar #tremecmagnum ...

345 7

Another magnum sequential shifter install ##sequential #s1sequential #tremec #lsswap #protouring #racecar #camaro #mustang @jwcarguy01 #tremecmagnum ...

980 4

Sequential #s1sequential #tremec #lsswap #v8 #drift #racecar @patrickbarlee_drift #tremecmagnum #gmt56 ...

970 8







Additional information

Weight 3.7 kg
Dimensions 30 × 30 × 10 cm
Right or Left lever

Right, Left

Magnum Type

Magnum-6 bolt, Magnum-XL, Magnum-F

14 reviews for Sequential Shifter: Magnum

  1. Simon

    Craig Meyer (verified owner)

  2. Simon

    allan kirk (verified owner)

  3. Simon

    Leo Overgaag (verified owner)

    there was some struggle, I have been meaning to send an email so I can understand my expectation better. I will do that in the next days.

  4. Simon

    Barry P. (verified owner)

    My only issue is on the 5 aluminum rectangular spacers. The directions call out 4 of one type and 1 of another type. I take it you have changed some components after the documentation was printed and did not include an addendum to clarify the parts. Please advise.

  5. Simon

    Bubba B. (verified owner)

    Quality engineered piece for sure. However on my application I had to machine the adapter plate so that the cam on the shifter wouldn’t hit. First and second were smooth, but going to third it bound up. After some investigating we noticed where it was hitting. After machining, the shifter worked smoothly.
    Also the reverse lockout plate needed to be sanded around the big end, because it would not sit flush when tightened.

    Overall, I’m happy with the purchase and equipment. And would buy it again.

  6. Simon

    Saeed Saif Mohammed Hyat (verified owner)

    Still working on it

  7. Simon

    Mohannad Almuagle (verified owner)

    Just received it from DHL .. I ordered it from Simon who was really helpful in making me understand Everything .. very nice guy .. keep up the good products and amazing service ..
    P.S: i ordered it from overseas and it only took 6 days to reach me .. i was afraid because of the whole COVID -19 world issue but DHL was fast .. this parts will be installed in my single turbo mustang on a T56 Magnum XL transmission ..

  8. Simon

    Sal Molinare (verified owner)

    I haven’t installed this yet but it looks awesome.

  9. Simon

    Azim Moonab (verified owner)

    awesome product..read /follow instructions

  10. Simon

    David Aaron (verified owner)

    Awesome part

  11. Simon

    Jordan W. (verified owner)

    Seems nice not to hard of a install havent got to drive the car yet but so far so good

  12. Simon

    Sonny Ippolito (verified owner)

    haven’t used it yet looks killer

  13. Simon

    abdul Wahab Al Suwaidan (verified owner)

    Very high quality

  14. Simon

    Brandon Hitchins (verified owner)

    outstanding quality
